The new K3080 continuous centrifugal from BMA
K3080: the most compact K3-series continuous centrifugal
Meet the new addition to our product range of continuous centrifugals machine: the K3080. It has excellent DNA: with more than 500 centrifugal machines commissioned since 2008, the continuous centrifugal K3 series has been setting new standards in centrifugal design.
So why introduce a new model? It’s quite simple really: the K3300F was developed for high throughputs such as found mainly in large beet or cane sugar factories. But the BMA range lacked a model geared to the requirements of smaller factories and refineries – until now.
The K3080 is a third-generation continuous centrifugal with an upper basket diameter of 1,080 mm. It is designed to process approx. 17 t / h of A product (refinery), 15 t / h of B product or 10 t / h of C product. Clearly, the actual throughput depends on operating conditions such as the massecuite properties.
„The key features of the new K3080: it is smaller than the K3300, but as efficient and with the same quality characteristics.“
Dr. Andreas Lehnberger
From the same family
BMA are experts in centrifugal design with professional knowledge of the processes in sugar factories and refineries. With these combined skills, we develop solutions that set standards in the market. Based on the K3300, our K3080 meets the highest technological standards. All parts that come into contact with the product are made from stainless steel, a major benefit in hygiene. The machine was designed with a focus on efficiency, modularity and usability.
Would you like to know more, request documentation or receive a quotation? Then contact us! We’ll get in touch with you as soon as possible.
Downloads
Please refer to the product brochure for more detailed information. We would also be happy to advise you in a personal consultation.

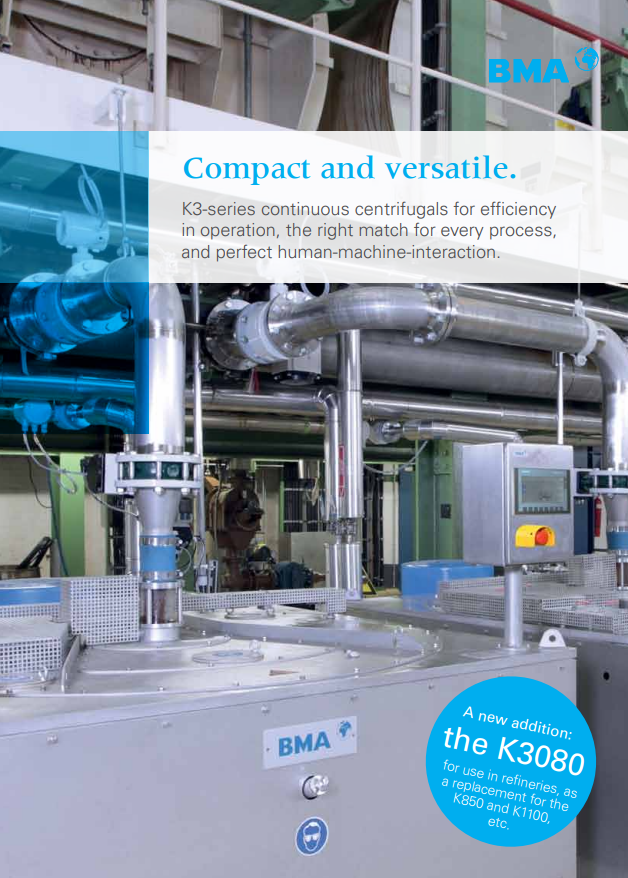

BMA_K3-Serie_B_en_00.pdf
Efficient power pack
Maximum output and minimum input – this definition of efficiency also applies to centrifugals. For BMA it means having to find the perfect balance between throughput and availability on the one hand, and investment and maintenance costs and the need for parts on the other.
Despite its small basket diameter, the continuous centrifugal K3080 boasts an impressive processing rate. This is largely thanks to the elliptical discharge openings in the basket. The centrifugal is driven by a premium-efficiency 55kW motor (energy efficiency class IE3) – a definite bonus for energy consumption.
Energy efficiency class IE3
Rubber buffers outside the heat-affected zone
BMA’s proprietary elliptical openings
Low maintenance and highly available
Good accessibility thanks to improved maintenance openings, fewer wear parts, and the use of maintenance-free components such as V belts make for longer service intervals and shorter maintenance times. The use of long-life components and a well thought-out design have also paid off. The rubber buffers, for instance, are positioned outside the heat-affected zone. All these measures help minimise maintenance costs for the continuous centrifugal K3080.
Performance
| Throughput Beet |
Motor: 50 Hz/55 kW | Motor: 60 Hz/67 kW | |||
|---|---|---|---|---|---|
| Typical2) throughput |
Maximum3) throughput |
Typical2) throughput |
Maximum3) throughput |
||
| B product | t/h | 15 | 21 | 15 | 25 |
| C product | t/h | 9 | 11 | 9 | 13 |
| C affination | t/h | 11 | 15 | 11 | 18 |
| Throughput Cane |
Motor: 50 Hz/55 kW | Motor: 60 Hz/67 kW | |||
|---|---|---|---|---|---|
| Typical2) throughput |
Maximum3) throughput |
Typical2) throughput |
Maximum3) throughput |
||
| B product | t/h | 14 | 20 | 14 | 23 |
| C product | t/h | 8 | 11 | 8 | 13 |
| Raw sugar affination | t/h | 15 | 21 | 15 | 25 |
| Throughput raw sugar |
Motor: 50 Hz/55 kW | Motor: 60 Hz/67 kW | |||
|---|---|---|---|---|---|
| Typical2) throughput |
Maximum3) throughput |
Typical2) throughput |
Maximum3) throughput |
||
| A product | t/h | 15 | 21 | 15 | 25 |
| B product | t/h | 14 | 20 | 14 | 23 |
| C product | t/h | 8 | 11 | 8 | 13 |
2) Typical throughput: max. throughput for good sugar quality; depending on massecuite quality.
3) Maximum throughput: max. throughput for top machine design; limited by motor load (sugar quality slightly lower than 2)
Would you like to know more, request documentation or receive a quotation for the continuous centrifugal K3080? Then contact us! We’ll get in touch with you as soon as possible.
Hard to beat in ease of use
BMA’s continuous centrifuges have an extremely long service life. They are also comfortable to operate over this long period of time. The new K3080 is no exception here and follows the example of the rest of the K3-series family.
In terms of its connections and usability, the K3080 relies on a winning plug-and-produce approach. Its central connection points for water and steam, and excellent accessibility of the controls thanks to its small size make the centrifugal very easy to handle. The sampler for sugar and syrup is located at the front for easy access. And customers can choose from a range of user interface languages – at no extra cost, of course.
Design
Volume & weight
Noise emission
Product sampling
Modular structure for custom configuration
Designing our centrifugals in such a way that they can be easily adapted to the operating conditions in any factory or refinery has proved to be an excellent approach. With its modular additions to the basic model, the new K3080, too, can meet the requirements of any company. An example: the housing comes in several variants and can be easily converted, for the discharge of either dry sugar via an outlet cone onto a conveying unit, or of mixed or melted sugar directly via pipes. So, whether the focus is on throughput, sugar or syrup quality, this centrifugal can be tailored to meet your goals.
PLC-based control system
The PLC-based control system from BMA, developed specially for continuous centrifugals, comes in a number of configurations based on components from, for instance, Siemens or Allen-Bradley. It has already proved successful with the K3300 and permits consistent operation of all state-of-the-art continuous centrifugals from BMA. The basic package comprises a broad range of sensors, such as a vibration sensor for maximum reliability.
Would you like to know more, request documentation or receive a quotation? Then contact us! We’ll get in touch with you as soon as possible.
Facts and figures
The K3080 is a third-generation continuous centrifugal with an upper basket diameter of 1,080 mm. It is smaller than the K3300, but as efficient and with the same quality characteristics.

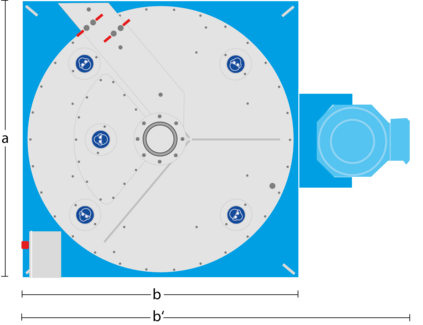

Top view

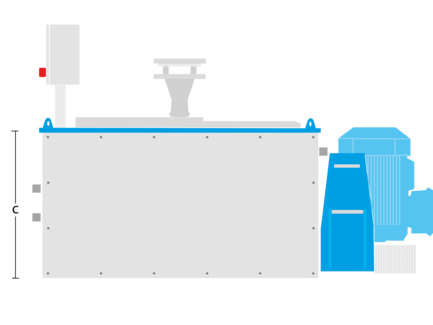

Side view
Weight and dimensions
The family resemblance between the K3080 and its bigger sister is quite striking – but the two have more in common than their compact square design. At 1,800 mm wide, 1,800 mm long (2,520 mm including the motor) and 960 mm high, the K3080 needs only little space and weighs 2.3 tons overall. This makes the K3080 the perfect replacement for older (BMA) centrifugals, as it requires few adjustments to fit into an existing centrifugal station.
| Type | Unit | Value |
|---|---|---|
| Basket diameter | mm | 1,080 |
| Length a | mm | 1,800 |
| Width b / b' with motor | mm | 1,800 / 2,520 |
| Height c | mm | 960 |
| Weight (including motor) | kg | 2,300 |
| Basket angle | ° | 30 |
| Screen surface | cm² | 14,500 |
Would you like to know more, request documentation or receive a quotation? Then contact us! We'll get in touch with you as soon as possible.
Excellent DNA
Over the past 50 years, BMA has launched several types of continuous centrifugals, each new model advancing with our vast field experience and our customers‘ very high requirements. In line with our vision Passion for Progress we have invested a lot of our energy into the research and development of continuous centrifugals.
The result of our persistent efforts are high-end centrifugals with excellent DNA that are used with great success in almost all sugar-producing countries around the globe.
2017
Present: K3080 – Excellent DNA
The K3080 is an addition to the K series. It is ideal for operation in refineries and as a successor to the K850 and K1100 machines. High efficiency, a very high level of customisation and ease of operation, e.g. thanks to the plug-and-produce principle, are among its convincing benefits.
Present: K3300 – Straight lines, right angles, outstanding performance
The K3300 was launched in 2009. Its square design made it stand out among continuous centrifugals. In addition, it is a hard-wearing machine that also meets high hygiene standards and permits higher throughputs than previous models.
2010
1995 - 2014
K2100/2200/2300/2400 – Perfect fit
The K2 series, available since the mid-1990s, is the first machine to come with a modular design.
DS1513/1311 – Two in one
The continuous „two-in-one“ centrifugals require extremely little space and provide for affination and melting within one single machine.
1991 - 2011
1982 - 1992
K1500DS – The DS
The K1500 DS normally comes as a basket-in-basket version and allows higher throughputs.
K1300 – New: with turbo
The K1300 boasts a yet higher throughput and improved rubber buffer support. A turbo product distributor is used for the first time.
1984 - 1998
1974 - 1994
K1100 – Wide range of new options
Benefits of the K1100 include a syrup separator, mixing and melting device and a separate motor bracket. It also has a higher throughput.
K1000 – Easy to maintain
The K1000 comes with an oil lubrication system.
1963 - 1977
1964 - 1983
K850 – The 1960s
In the mid-1960s, the K850 is enhanced with a central feed system and a double-walled distribution pipe. Its throughput is now even higher.
K750 – The first K centrifugal
Small size, sturdy design, a 3-stage basket: the key assets of the first K machine from BMA.
1958 - 1965
