Sugar beet extraction plants
For decades, BMA is recognised as the world leader in developing, designing and constructing continuously operating vertical sugar beet extraction plants. BMA’s sugar beet extraction plants are among the most efficient plants on the market, both in terms of technology and heat economy.
Read more

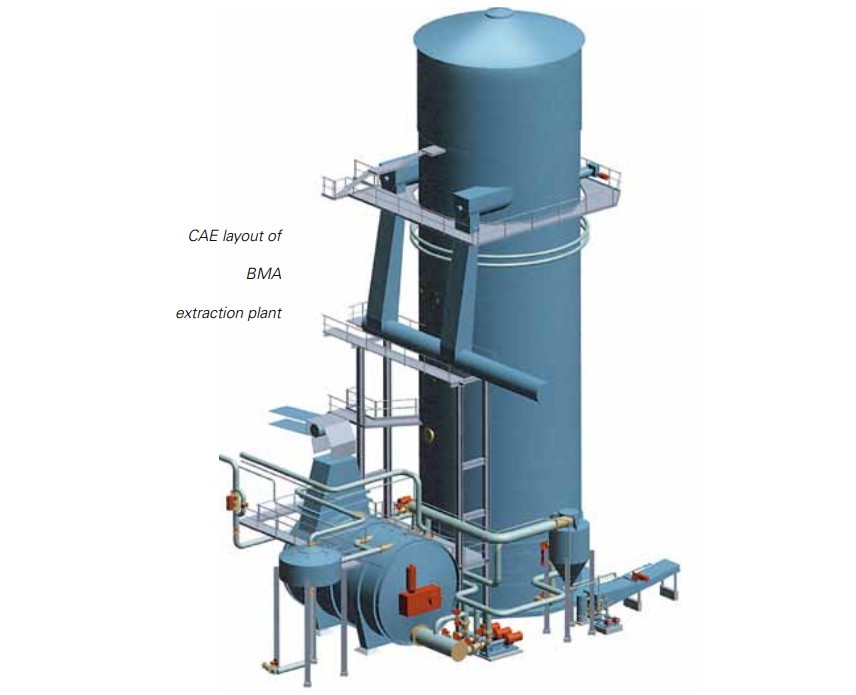

The BMA beet extraction plant has two main components accomplishing different technological tasks
Countercurrent cossette mixer
For thermal denaturation of the cells, heat exchange between incoming cossettes and outgoing juice, and defoaming.
Extraction tower
For solid/liquid extraction of sucrose from the beet cells by the countercurrent principle.
Both components – countercurrent cossette mixer and extraction tower – are interconnected by a piping system and pumps and thus operate as one single unit.
Features and advantages of BMA sugar beet extraction plants
- Experience from more than 360 extraction plants in almost all sugar beet processing countries in the world
- Small space requirements
- System allowing long distances between countercurrent cossette mixer and extraction tower
- Outdoor installation of extraction tower even under extreme weather conditions
- Very high operational reliability
- Very high flexibility to adapt to operating conditions and cossette quality (with processing rates between 65 and 120% of rated capacity)
- Option of combining a countercurrent cossette mixer with two or more extraction towers, or one tower with a number of countercurrent cossette mixers
Read more
Available sizes
| Beet slice rate nominal [t/d] |
Extraction tower diameter [m] |
CC cassette mixer diameter/length [m] |
|---|---|---|
| 4,000 | 6.5 | 4.2 / 7.0 |
| 5,000 | 7.0 | 4.7 / 8.0 |
| 6,000 | 7.6 | 5.2 / 8.0 |
| 7,000 | 8.2 | 5.6 / 8.0 |
| 8,000 | 8.9 | 6.0 / 8.0 |
| 9,000 | 8.9 | 6.0 / 8.0 |
| 10,000 | 9.6 | 6.7 / 8.5 |
| Beet slice rate nominal [t/d] |
Extraction tower diameter [m] |
CC cassette mixer diameter/length [m] |
|---|---|---|
| 11,000 | 10.6 | 6.7 / 8.5 |
| 12,000 | 10.6 | 7.5 / 9.5 |
| 13,000 | 12.0 | 7.5 / 9.5 |
| 14,000 | 12.0 | 8.2 / 10.0 |
| 15,000 | 13.6 | 8.2 / 10.0 |
| 16,000 | 13.6 | 9.0 / 11.0 |
| 17,000 | 13.6 | 9.0 / 11.0 |
Downloads
Please refer to the product brochure for more detailed information. We would also be happy to advise you in a personal consultation.
