Batch pan (DVK)
Batch pan (DVK)
Experience gathered in more than one hundred years in the design and construction of batch pans and know-how acquired from vertical continuous pans (VKT) now determine the design of modern pans.
BMA designs and constructs batch pans for all crystallization products in the beet and cane sugar industry and for refineries. They are made in non-alloy steel (carbon steel), or in stainless steel (in whole or in part).
Even though the sugar industry increasingly changes to continuous pan boiling, batch pans are still required, e.g. for the production of seed.
Advantages and features
- Central circulation pipe (downtake)
- Welded heating tubes with a tube-to-tube distance <10 mm (providing larger heating surfaces)
- Optimal calandria deaeration and condensate removal
- Mechanical agitator conformed to calandria, downtake, shape of pan bottom and application
- Pan bottom designed for optimum flow (no dead corners)
- Starting volume <30%
- Low massecuite level above the calandria
- Excellent crystal quality even in large units
- Efficient separation of juice from vapour
Standard sizes of batch pans
| Type | mm | D3200 | D3600 | D4000 | D4400 | D4800 | D5200 | D5600 |
|---|---|---|---|---|---|---|---|---|
| Diameter | mm | 3.200 | 3.600 | 4.000 | 4.400 | 4.800 | 5.200 | 5.600 |
| Nominal capacity | l | 40 | 50 | 60 | 75 | 90 | 105 | 125 |
| Heating surface | m² | 190 | 249 | 315 | 387 | 468 | 558 | 651 |
Downloads

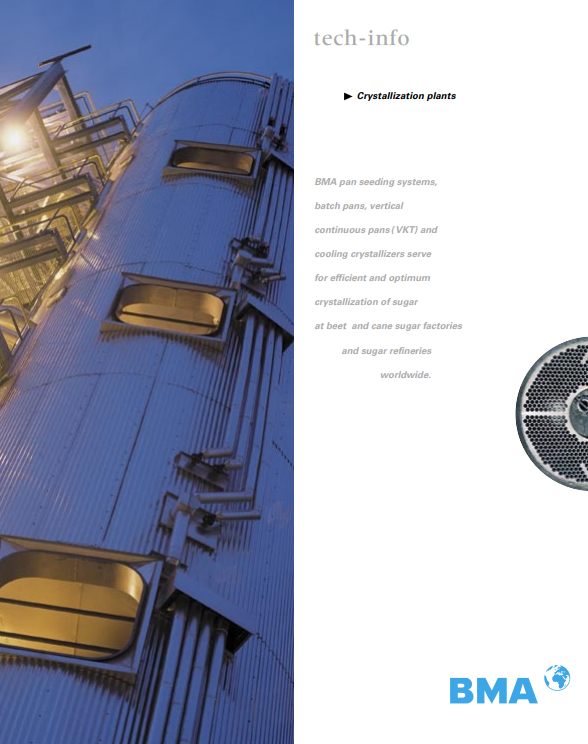

Please refer to the product brochure for more detailed information. We would also be happy to advise you in a personal consultation.
